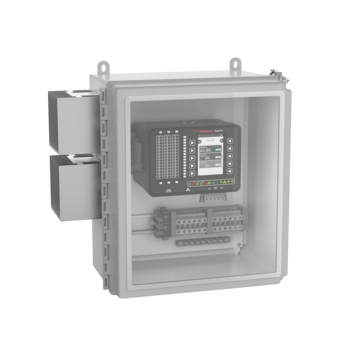

Introducing the Raychem Elexant 7300i: A New  Dual-Circuit Heat Tracing Controller

As industrial facilities continue to modernize their heat tracing infrastructure, the need for smarter, more intuitive, and future-ready control solutions has never been greater. Introducing the Raychem Elexant 7300i, Chemelex's next-generation controller for electric heat tracing control and monitoring.

The Elexant 7300i dual circuit controller combines the proven Raychem 920 functionality users expect with a modern graphical user interface that enhances usability, simplifies commissioning, and improves operational visibility.

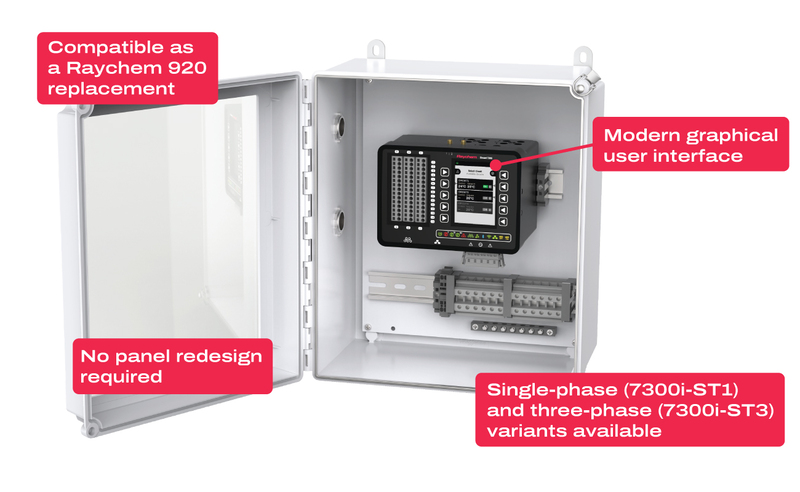

The Elexant 7300i is initially available in two variants:

• ST1 – Single-phase configuration
• ST3 – Three-phase configuration

These models are compatible drop-in replacements for the Raychem 920 where no traced-circuit redesigns are required. This streamlined transition minimizes downtime, reduces engineering effort, and simplifies modernization projects. You simply remove the 920 module in its current enclosure as a whole and replace it with the new Elexant 7300i.

 What Makes the Elexant 7300i So Compelling?

1. Designed for Ease of Use

The Elexant 7300i was developed with installers, operators, and maintenance teams in mind.

Key features include:

• True three-phase current monitoring up to 63A/690Vac per circuit, supporting a wide range of industrial heat tracing applications.
• Current 920 Modbus compatibility for seamless integration with existing controllers in the field.
• Enclosure footprint compatibility with popular Raychem 920 configurations, allowing easy drop-in replacements.

If you're upgrading an existing system, the Elexant 7300i makes implementation straightforward and efficient.

2. NAM Approvals

Industrial facilities operate in diverse and often demanding environments. The Elexant 7300i is engineered to meet North America requirements with global requirements currently pending.

Highlights include:

• Approved for both hazardous and non-hazardous environments
• Certified for Class I, Division 2 and Zone 2 (operating temp range is -40°C to +55°C) installations
• Compliance with key environmental and regulatory standards, including:

These approvals provide confidence that the controller can meet the needs of industrial facilities around the world while supporting regulatory compliance initiatives.

3. Improved User Experience

One of the most notable advancements in the Elexant 7300i is its focus on usability.

The controller features a modern and intuitive local user interface designed to reduce complexity and improve operator efficiency. Users benefit from:

• Clear, per-circuit status visibility
• Simplified navigation and configuration
• Streamlined commissioning processes
• Reduced training requirements
• Multi-language support, including English and French

Future-Ready Heat Tracing Control

The Raychem Elexant 7300i represents the next step in the evolution of electric heat tracing control and monitoring. Combining the trusted functionality of the Raychem 920 platform with a modern user experience, it offers an ideal upgrade path for facilities seeking greater operational efficiency and reliability.

For organizations looking to modernize their heat tracing infrastructure without the complexity of a complete system redesign, the Elexant 7300i delivers a smart, seamless, and future-ready solution.

To learn more about the Raychem Elexant 7300i, check out the product page here.
